Manual pallet stacker - Capacity 500 kg - Manutan Expert

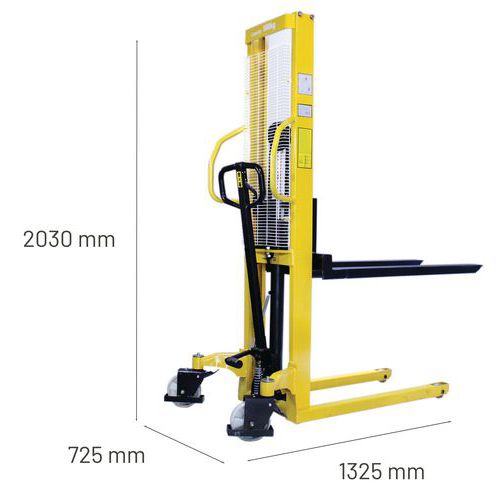

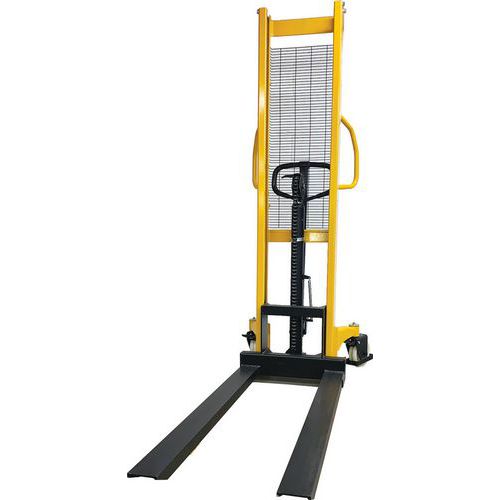

Manual pallet stacker, Load capacity: 500 kg, Max. lift height: 1600 mm, O/A length: 1650 mm
Manual pallet stacker, Load capacity: 500 kg, Max. lift height: 1600 mm, O/A length: 1650 mm
Click and drag to spin
Specifications
Product Information
| Product Name | Manual pallet stacker, Load capacity: 500 kg, Max. lift height: 1600 mm, O/A length: 1650 mm |
|---|---|
| Brand | Manutan Expert |
| Packaging | unit |
Technical Specification
| O/A width (mm) | 630 mm |
|---|---|
| Max. width across forks (mm) | 560 mm |
| Fork length (mm) | 1150 mm |
| Load capacity (kg) | 500 kg |
| Min. lift height (mm) | 90 mm |
| Lifting height per beam movement (mm) | 22 mm |
| Max. lift height (mm) | 1600 mm |
| Steering wheel width (mm) | 40 mm |
| Forks Ext. Gap (mm) | 560 mm |
| Steeringwheel Ø (mm) | 150 mm |
| Product weight (kg) | 154 kg |
| Load capacity (kg) | 500 kg |
| Steering wheel tyre | Nylon |
| Ergonomic | no |
| O/A length (mm) | 1650 mm |
| O/A height (mm) | 1970 mm |
