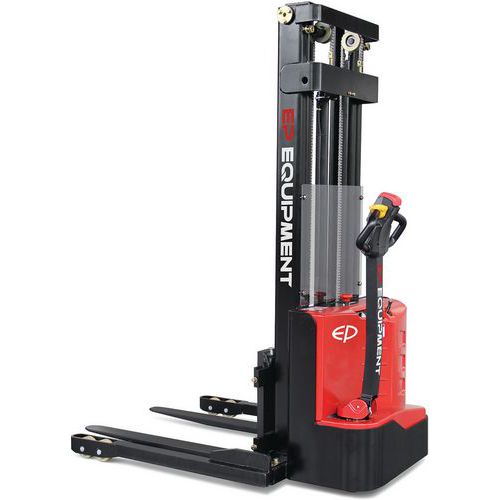

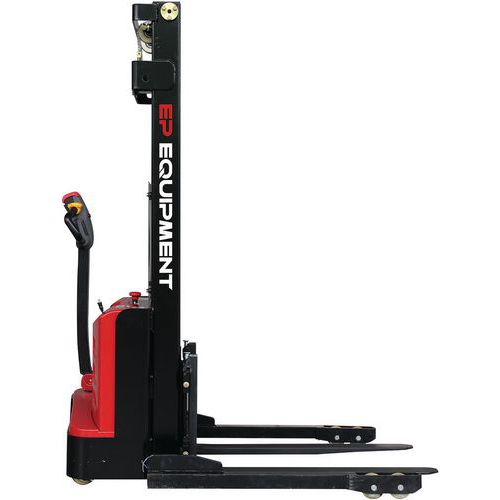

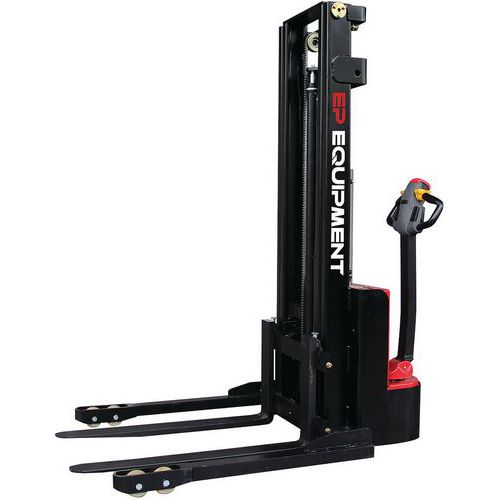

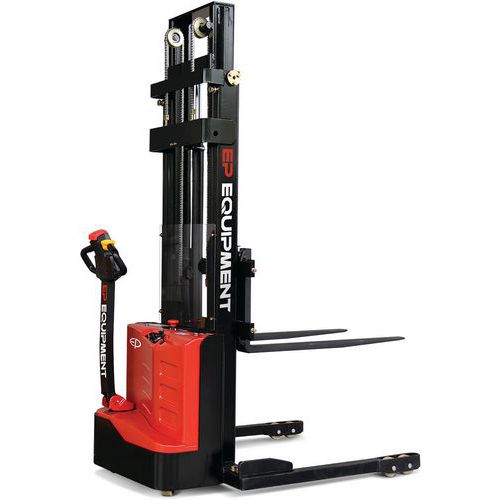

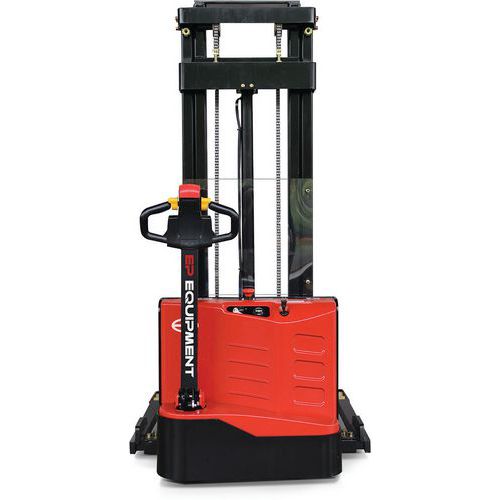

Fully Electric Powered Straddle Stacker/Truck - All EU/UK Pallets - EP

Ideal for lifting and moving pallets across warehouses.

The adjustable straddle arms make it suitable for many different pallet sizes.
Powerful AC motor ensures strong power, accurate control, and superior performance.
Features high-strength vertical gearbox and H-shape mast channel for extended product life and stability.
Equipped with a 24-volt ZAPI transistor control for high torque and efficient operation.
Bolt-on straddle for easy width adjustment, accommodating various pallet sizes for enhanced flexibility.
Powerful AC motor.
Easy maintenance.

Description

Ideal for lifting and moving pallets across warehouses.

The adjustable straddle arms make it suitable for many different pallet sizes.
Powerful AC motor ensures strong power, accurate control, and superior performance.
Features high-strength vertical gearbox and H-shape mast channel for extended product life and stability.
Equipped with a 24-volt ZAPI transistor control for high torque and efficient operation.
Bolt-on straddle for easy width adjustment, accommodating various pallet sizes for enhanced flexibility.
Powerful AC motor.
Easy maintenance.

Please Note: This is a tall item of 2086mm (retracted mast height) and a forklift truck must offload the pallet stacker at the delivery address. If you do not have an onsite forklift truck, please call our sales team to quote for an updated carriage cost.

Specifications

Product Information

Product Name	Fully Electric Powered Straddle Stacker/Truck, Load capacity: 1200 kg, Max. lift height: 2930 mm
Brand	EP
Packaging	unit

Technical Specification

No load descent speed (m/s)	0.11 m/s
Moving speed with load (km/h)	4 km/h
O/A width (mm)	1435 mm
Turning radius (mm)	1404 mm
Fork length (mm)	1070 mm
No load lifting speed (m/s)	0.22 m/s
Moving speed without load (km/h)	4.5 km/h
Load capacity (kg)	1200 kg
Max. lift height (mm)	2930 mm
Loaded descent speed (m/s)	0.12 m/s
O/A length (mm)	1650 mm
O/A height (mm)	3895 mm
Load capacity (kg)	1200 kg
Loaded lifting speed (m/s)	0.12 m/s
Product weight (kg)	676 kg
